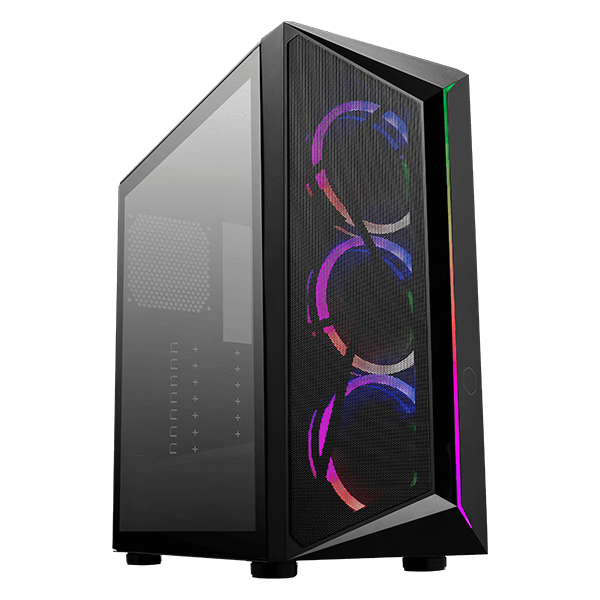

COOLER MASTER CMP 510

6 Months Warranty

THE SABER’S EDGE
ARGB Strip
Large Filtered Intakes
Versatile Cooling Options
Full Black Coating & PSU Cover
Breathable Power Supply Shroud
Room For Upgrades

MODEL NUMBER CP510-KGNN-S00, CP510-KGNN-S01
EXTERIOR COLOR BLACK
MATERIALS STEEL, PLASTIC, TEMPERED GLASS
DIMENSIONS (L X W X H) 445 X 204 X 463MM (INCL. PROTRUSIONS), 436 X 204 X 448MM (EXCL. PROTRUSIONS)
VOLUME 39.85L (EXLC. PROTRUSIONS)
MOTHERBOARD SUPPORT MINI ITX, MICRO ATX, ATX
EXPANSION SLOTS 7
2.5″ / 3.5″ DRIVE BAYS (COMBO) 2
2.5″ DRIVE BAYS 2
I/O PANEL 1X USB 3.2 GEN 1 TYPE-A, 1X USB 2.0, 1X 3.5MM HEADSET JACK (AUDIO+MIC), 1X ARGB CONTROLLER
PRE-INSTALLED FANS – FRONT 3 X 120MM ARGB FAN (CP510-KGNN-S00)
PRE-INSTALLED FANS – REAR N/A
FAN SUPPORT – TOP 2X 120MM, 2X 140MM
FAN SUPPORT – FRONT 3X 120MM, 2X 140MM
FAN SUPPORT – REAR 1X 120MM
RADIATOR SUPPORT – TOP 120 / 240MM (MEMORY BAR HEIGHT LIMIT 35MM, FIRST ASSEMBLE THE MEMORY AND THEN ASSEMBLE THE RADIATOR)
RADIATOR SUPPORT – FRONT 120MM, 140MM, 240MM, 280MM
RADIATOR SUPPORT – REAR 120MM
CLEARANCE – CPU COOLER 161MM
CLEARANCE – PSU 160MM
CLEARANCE – GFX 350MM (W/O FRONT FANS & RADIATOR)
CABLE ROUTING 18.5MM
DUST FILTERS TOP, BOTTOM
POWER SUPPLY SUPPORT BOTTOM MOUNT, ATX
SERIES CMP SERIES
SIZE MID TOWER
